UHF RFID solution for asset tracking

UHF RFID Readers

RDL UHF reader device is enabled with the world’s best high performance chip and Higher Sensitivity antenna to continuously monitor, track, identify items and their locations within large areas.

RDL UHF Reader comes with features: fast identification, excellent multi-tag reading, strong anti-collision. IP65 rated UHF readers are widely used in production automation, parking automation, fixed asset management, hospital, access control, logistics, warehouse inventory, product tracking and other domains.

Features

  • Software SDK / API help in faster application development.
  • Support Ethernet, WiFi, 4G/LTE RS232, RS485, Wiegand communication Interface*.
  • Supports TCP/IP, HTTP & MQTT protocol and faster data processing*.
  • Support covering larger area over TCP/IP wired / wireless network environment.
  • Aluminum casting / IP65 rated housing applies to all weather industrial scenarios.
  • Deployment / wiring made easier with integrated Reader and antenna design.

  • Various SDK (.Net, Java, Python and Android) for rapid implementation of large projects.
  • Multiple reader types available, including handheld, wall-mount and desktop models.
  • Reading range supports 50 cm to 15 meters**.
  • Frequency 902-926 MHz , 865-868M Hz.
  • Read rate 200 count per second.
  • Adjustable Antenna (circular polarization) Range 3 DBi to 12 DBI and RF power up to 30 dBm*.
  • Supported ISO18000-6C(EPC Gen2).
  • Working Voltage range DC 9 to 24V.

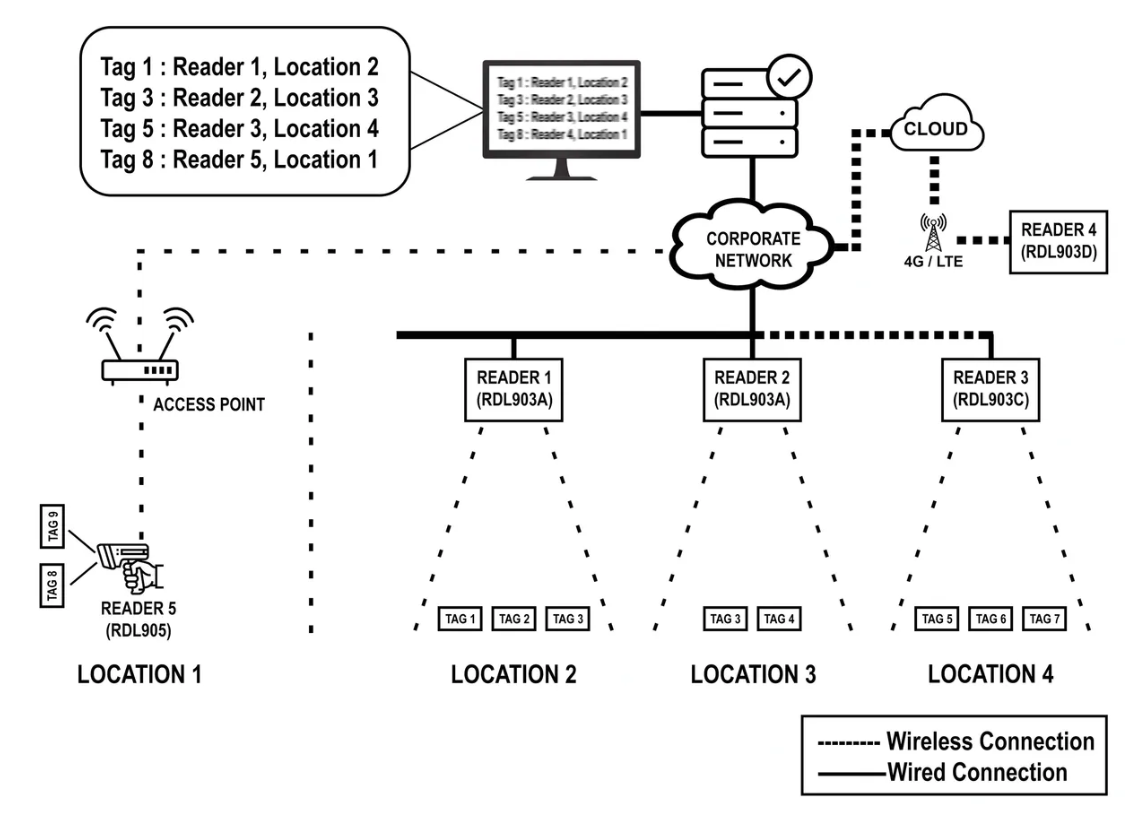

Ultra high frequency RFID system for inventory management

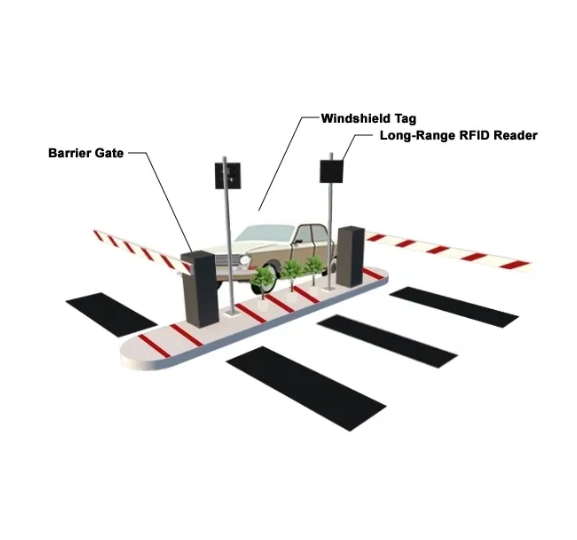

Real-time tracking with UHF RFID technology

Applications

  • Supply Chain Management.
  • Inventory and cycle counting.
  • Asset management.
  • E-parking, garbage trucks.
  • Identity management and access control.
  • Event Management.
  • Inspections and code enforcement.
  • Toll Gates.
  • Document and folder tracking.
  • Patient location tracking.
  • Pharmaceutical Industry.
  • Library Management.
  • Retail and Logistics.
  • Maintenance and Repair.
  • Oil and Gas Industry.


Benefits

  • Improved productivity & asset utilization.
  • Paperless Production environment.
  • Performance Forecasting.
  • Production count & rejection.
  • Improve the quality and transparency of data across the supply chain.
  • Increase the accuracy and reduce the time spent taking inventories.
  • Reliable traceability in challenging physical environments.

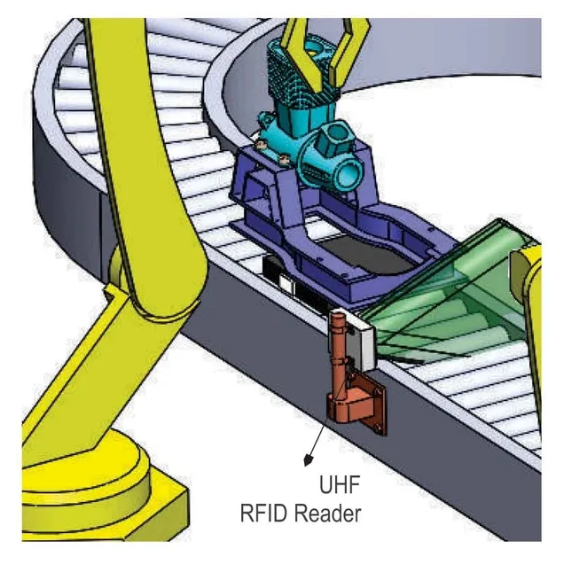

Smart UHF RFID solution for industrial automation

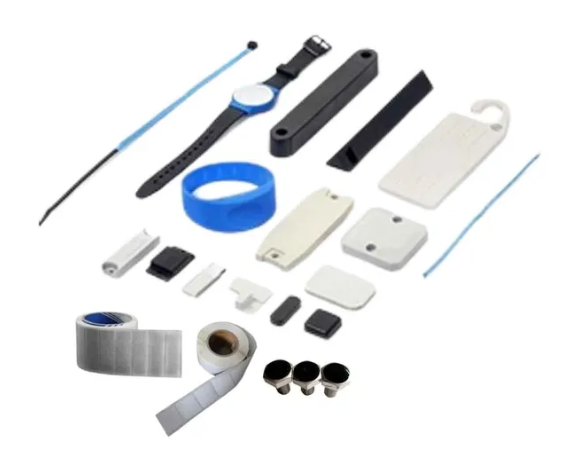

Long-range UHF RFID tag reading

RFID Tags

  • Paper Tag.
  • EPC Tag.
  • Inlay Tag.
  • Button Tag.
  • Anti Metal Tag.
  • Glue Tag
  • Key Tag
  • Glass Tag
  • Ear Tag
  • Ceramic Tag
  • Disc Tag
  • High Temperature Tag
  • Jewellery Tag
  • Wind Shield Tag


SDK's

UHF RFID reader for asset and inventory monitoring

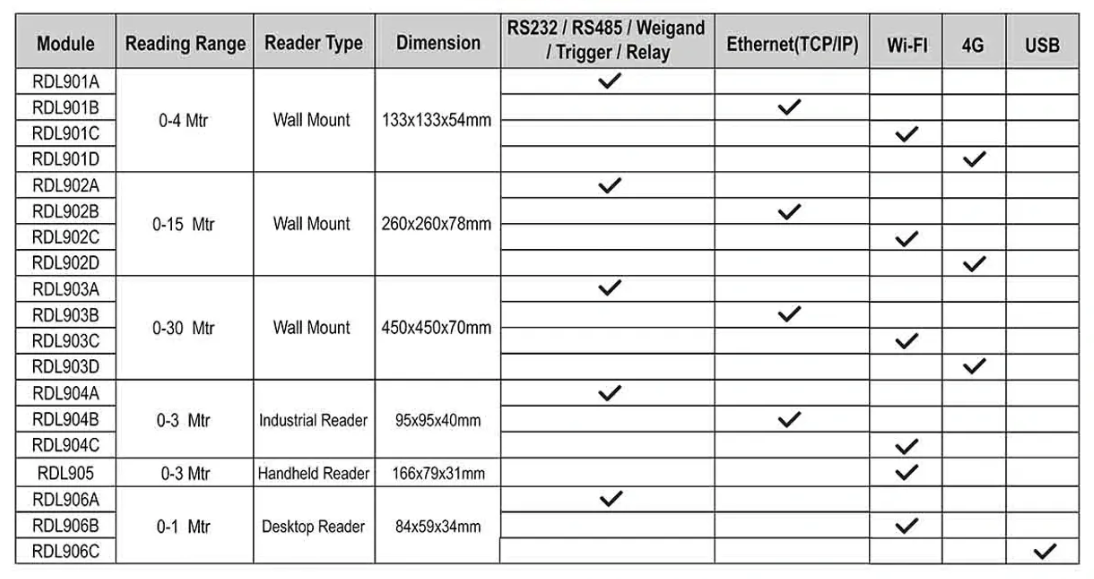

Order Table

IoT-enabled UHF RFID tracking system
